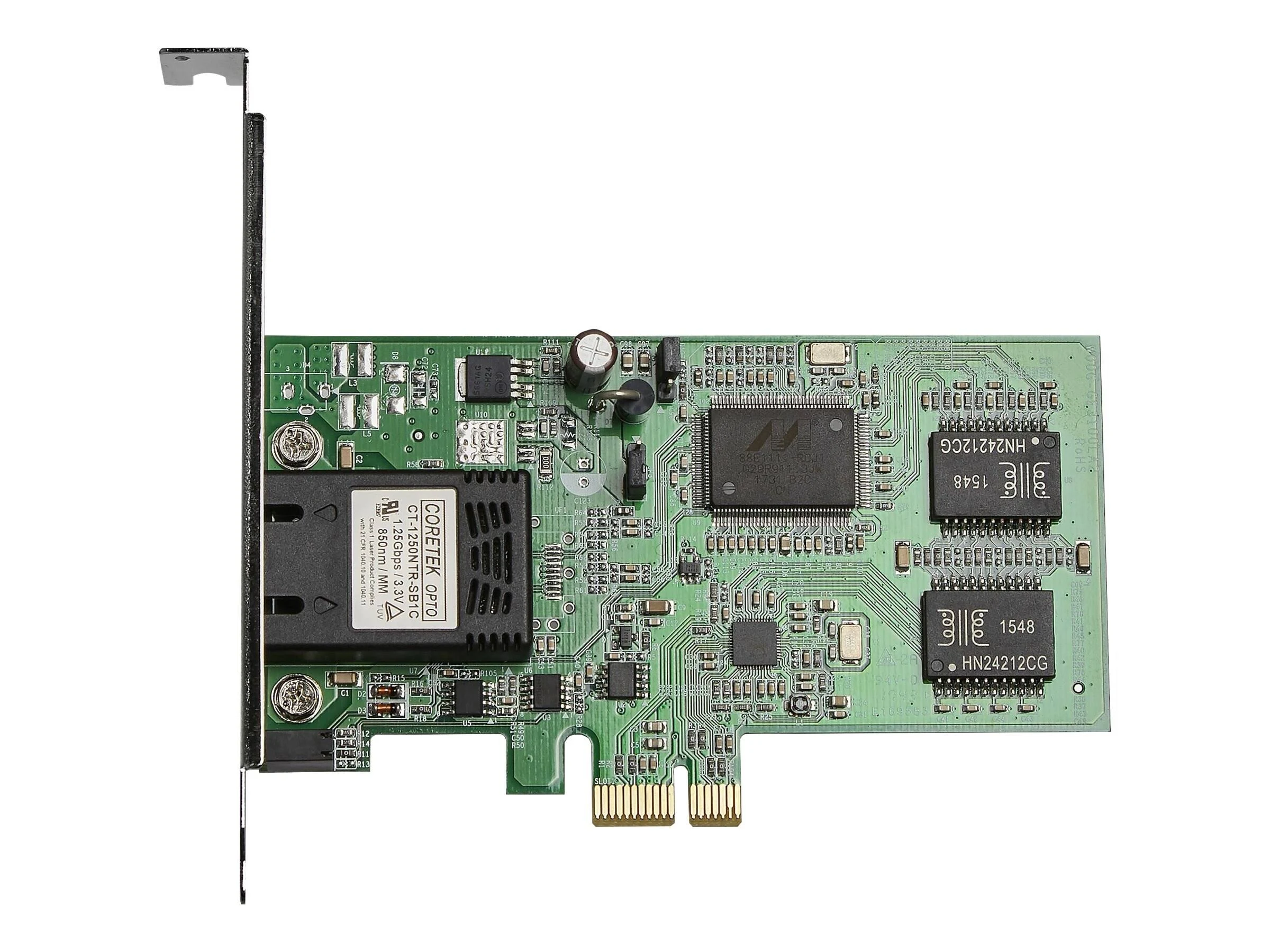

StarTech.com PCIE Gigabit SC Fiber Network Card – Reliable Fiber Connectivity

The StarTech.com PCIE Gigabit SC Fiber Network Card (PEX1000MMSC2) allows you to connect your desktop PC directly to a fiber optic network. By adding a multimode SC fiber port to your computer or server through a PCI Express slot, you can integrate into new or existing fiber infrastructure over great distances. This card is perfect for anyone needing a secure and reliable network connection, free from electronic interference.

Best Features:

• Gigabit Ethernet Connectivity: Provides full Gigabit bandwidth for high-speed data transfer.
• Multimode SC Fiber Port: Allows direct connection to multimode fiber optic networks using SC connectors.
• PCI Express Interface: Ensures compatibility with most modern desktop computers.
• Extended Distance Support: Supports fiber connections up to 550 meters using 50/125 micron cable and up to 220 meters using 62.5/125 micron cable.
• Immune to Electronic Interference: Fiber optic connections are not susceptible to electromagnetic interference.
• Low-Profile/Half-Height Bracket Included: Allows installation in small form-factor computers.

Technical Specifications:

• Product Type: Gigabit Ethernet Card
• Interface: PCI Express x1
• Ports: 1 x SC Fiber
• Data Transfer Rate: 2 Gbit/s (Full-Duplex)
• Network Technology: 1000Base-SX
• Fiber Distance: Up to 550m (50/125 micron), up to 220m (62.5/125 micron)
• Form Factor: Plug-in Card
• Chipset ID: Realtek RTL8168E
• Buffer Size: 48 KB
• Connector Type: 1 x PCI Express x1 Male, 1 x Fiber Optic SC Duplex Female
• Standards: IEEE802.3z 1000Base-SX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Humidity: 5~95% RH (Non-Condensing)
• Power Consumption: 3.2W Max
• OS Compatibility: Windows XP, Vista, 7, 8, 8.1, 10, 11, Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, Mac OS X 10.5 to 10.9, Linux 2.4.x to 4.11.x LTS, Microsoft Hyper-V

Warranty & Support:

This StarTech.com network card comes with a 2-year warranty and free lifetime technical support. This ensures that you can get help and support if you need it, giving you peace of mind with your purchase.

How to Use:

1. Power down your computer and unplug the power cord.
2. Open your computer case and locate an available PCI Express x1 slot.
3. Insert the PEX1000MMSC2 card into the PCI Express x1 slot.
4. Secure the card with the case screw.
5. Connect your multimode SC fiber cable to the SC port on the card.
6. Close your computer case, plug in the power cord, and power on your computer.
7. Install the necessary drivers from the included CD or download them from the StarTech.com website.
