StarTech.com MSTDP124DP: DisplayPort to 4x DisplayPort MST Hub

Unlock the power of multi-display productivity with the StarTech.com MSTDP124DP MST Hub. This DisplayPort to 4x DisplayPort Multi-Stream Transport (MST) hub allows you to connect up to four DisplayPort monitors to your DisplayPort 1.2 enabled Windows laptop or desktop. Perfect for professionals who need a larger visual workspace, digital signage applications, or anyone looking to enhance their multitasking capabilities.

Best Features:

• Multi-Monitor Configuration: Drive up to 4x 1080p 60Hz DisplayPort monitors from a single DisplayPort output on your Windows PC.
• Increased Productivity: Extend or mirror your displays to create a more efficient workspace for multitasking.
• DisplayPort 1.2 and MST Support:Utilizes MST technology to natively support DisplayPort monitors, delivering uncompressed video.
• Plug-and-Play Installation: Easy, driverless setup for Windows-based systems.
• Versatile Compatibility: Use DisplayPort video adapters to connect HDMI, VGA, or DVI displays.
• Compact Design: With a minimal footprint, this hub won’t clutter your workspace.

Technical Specifications:

• Output: 4x DisplayPort 1.2
• Input: 1x DisplayPort 1.2 (with latching connector)

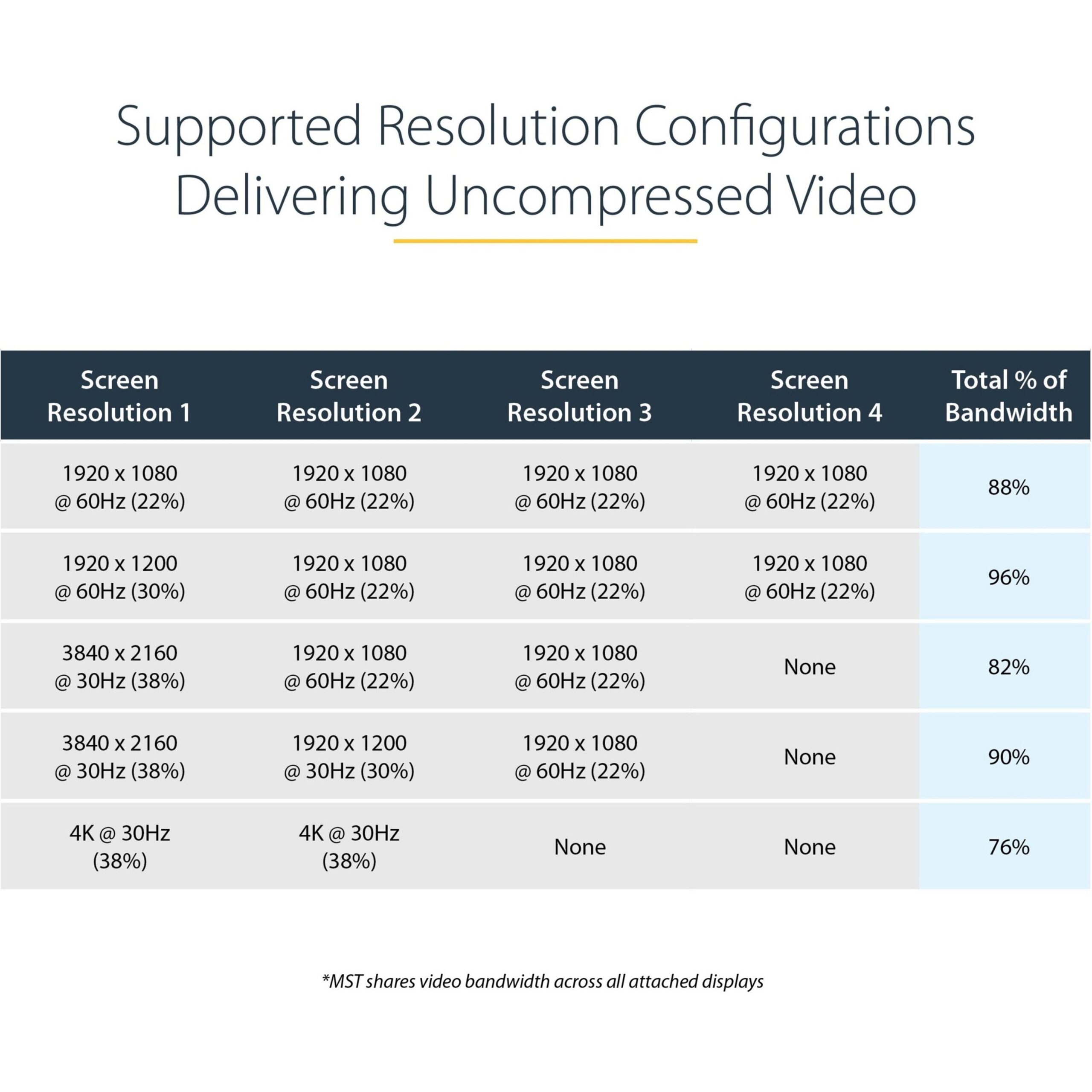

• Maximum Resolution: Up to 3840 x 2160 (4K) at 30Hz (or 1080p at 60Hz on all 4 displays)
• Bandwidth: 21.6 Gbps
• Maximum Operating Distance: 2 m [n/a]
• Audio Support: 7.1 channel surround sound
• HDCP Compliance: HDCP 1.3
• Dimensions: 2.6 in (Width) x 0.6 in (Height) x 15.2 in (Length)
• Weight: 4.6 oz (129 g)
• Housing Material: Plastic [n/a]

Networking Equipment Features:

• Network Standards: N/A (This is a video splitter, not a networking device)
• Data Transfer Rate and Number of Ports: 21.6 Gbps, 1 DP input, 4 DP outputs
• Management Features: Unmanaged [n/a]
• Security Protocols: N/A [n/a]

How to Use:

1. Plug the MST hub into a compatible DisplayPort 1.2 output from your computer.
2. Plug the power adapter into the MST hub and a power outlet.
3. Plug your DisplayPort monitors into the MST hub.
4. Turn on your computer and monitors.
5. Configure your displays in Windows display settings.

Conclusion:

The StarTech.com MSTDP124DP is a reliable solution for expanding your visual workspace and boosting productivity. With its easy setup, versatile compatibility, and support for high-resolution displays, this MST hub is an excellent investment for professionals and enthusiasts alike. Don’t limit yourself to a single screen – order your MSTDP124DP today and experience the benefits of multi-monitor efficiency!
