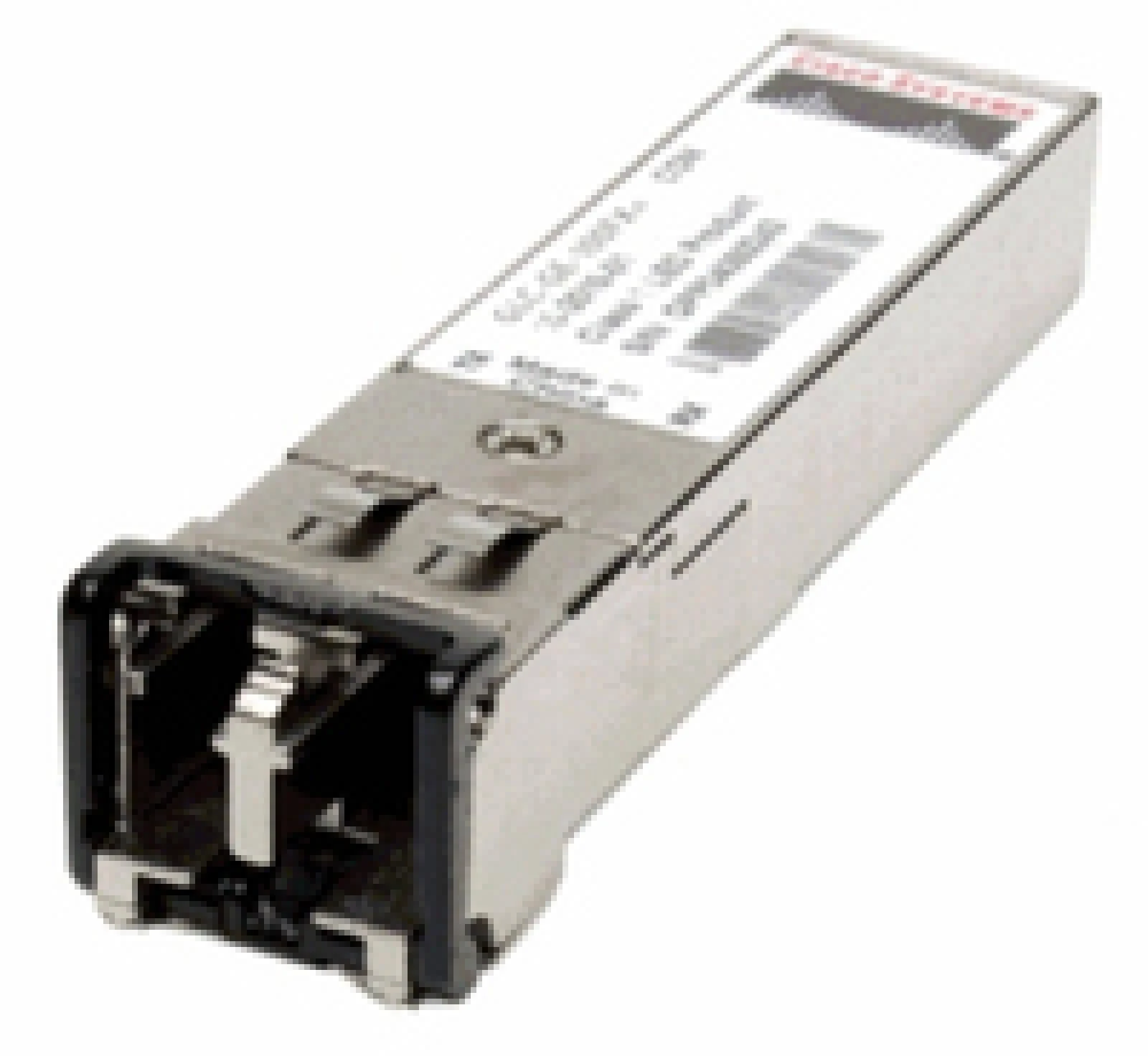

Cisco SFP-10G-BXD-I: 10G SFP+ Bidirectional Transceiver for 10km

The Cisco SFP-10G-BXD-I is a high-performance SFP+ transceiver module designed for 10 Gigabit Ethernet applications. This bidirectional (BiDi) module allows for 10Gbps data transmission and reception over a single strand of single-mode fiber, making it ideal for network upgrades and expansions in data centers, enterprise environments, and service provider networks. It is designed for use in Cisco switches and hubs.

Best Features:

• 10 Gigabit Ethernet: Supports 10Gbps data transfer rates for high-bandwidth applications.
• Bidirectional (BiDi) Operation: Transmits and receives data over a single fiber strand, reducing cabling costs and simplifying network management.
• 10km Reach: Enables connections up to 10 kilometers over single-mode fiber (SMF).
• SFP+ Form Factor: Pluggable module for easy installation and upgrades in SFP+ ports.
• LC Connector: Utilizes a standard LC connector for reliable fiber connections.
• Digital Optical Monitoring (DOM): Provides real-time monitoring of transceiver performance, including optical power, temperature, and voltage.

Technical Specifications:

• Form Factor: SFP+
• Data Rate: 10.3125 Gbps
• Wavelength: 1330nm TX / 1270nm RX
• Distance: Up to 10km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC
• DDM/DOM Support: Yes
• Operating Temperature: Industrial -40°C to +85°C

Networking Equipment Features:

• Network Standards: IEEE 802.3ae 10GBASE-BX
• Data Transfer Rate: 10 Gbps
• Number of Ports: 1
• Management Features: Digital Optical Monitoring (DOM) for real-time performance monitoring
• Security Protocols: While the module itself doesn’t directly implement security protocols, it supports secure data transmission when used with network devices that have security features like firewalls and VPNs.

How to Use:

1. Ensure your Cisco switch or hub supports SFP+ modules.
2. Power off the switch before installation.
3. Insert the SFP-10G-BXD-I module into an available SFP+ port.
4. Connect a single-mode fiber cable with an LC connector to the module.
5. Power on the switch.
6. Monitor the connection via the switch’s management interface.

Conclusion:

The Cisco SFP-10G-BXD-I is a reliable and cost-effective solution for upgrading your network to 10 Gigabit Ethernet. Its BiDi functionality, 10km reach, and compatibility with Cisco equipment make it an excellent choice for data centers, enterprise networks, and service providers. Upgrade your network today!
