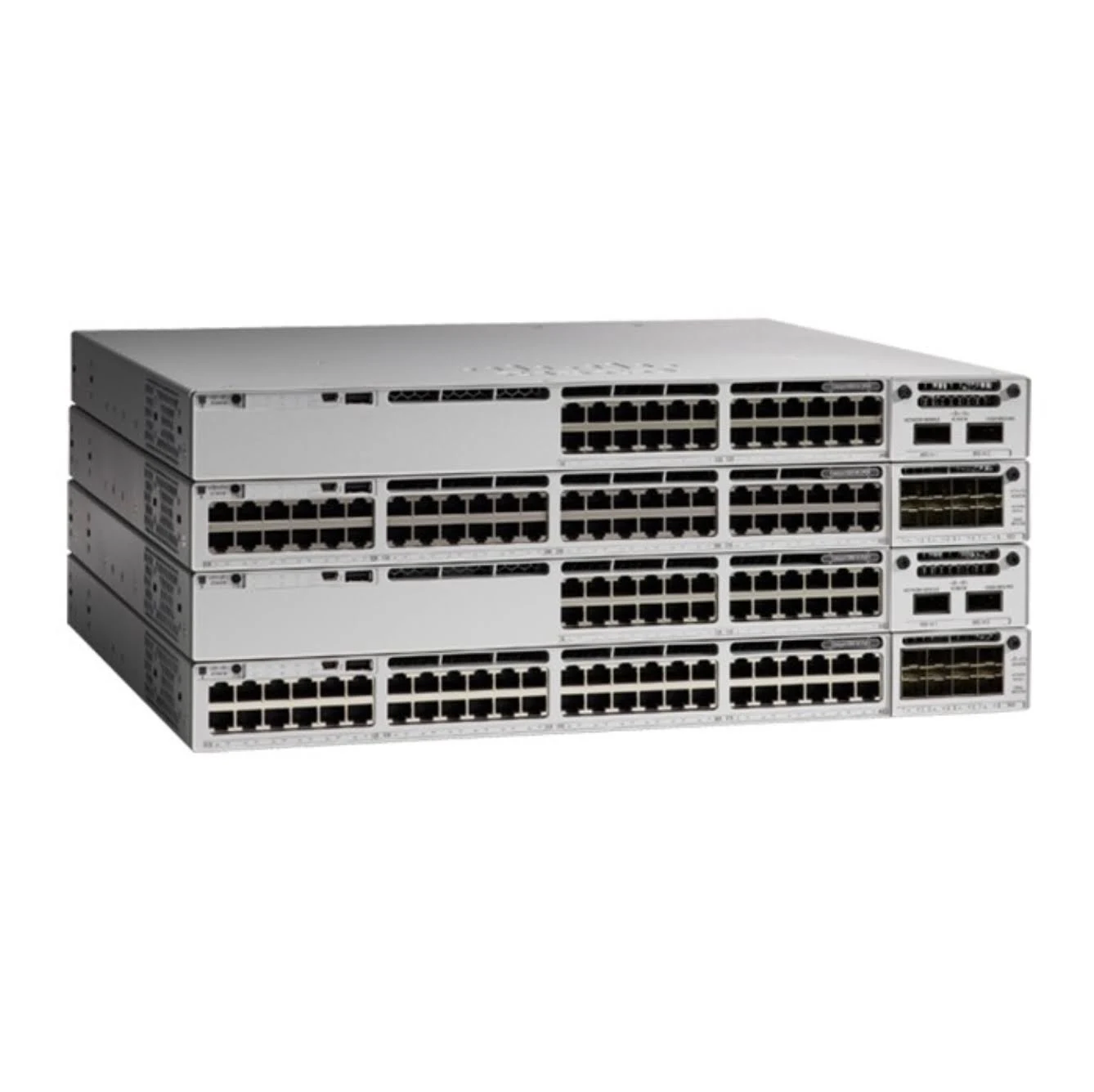

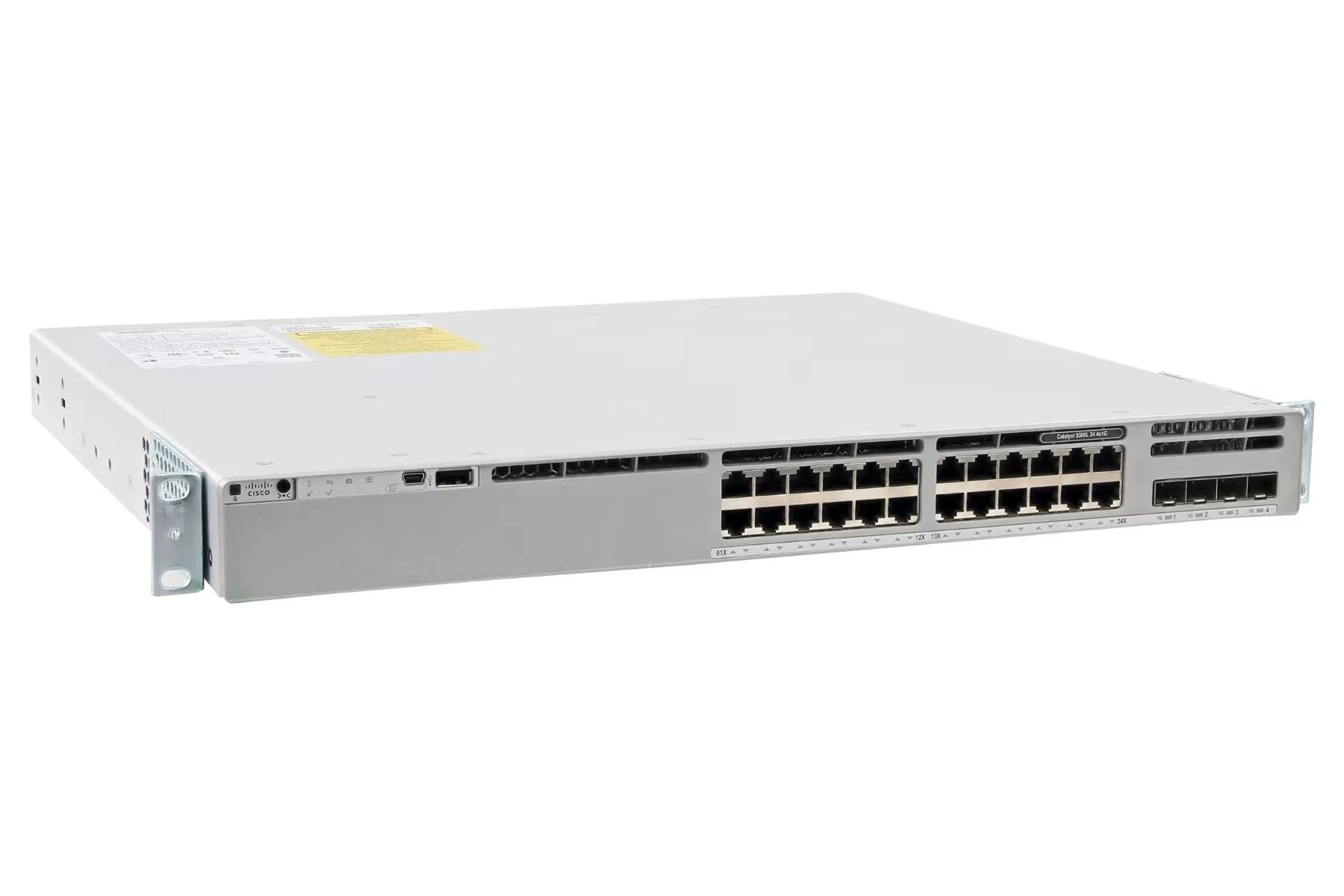

Cisco Catalyst 9300L-24T-4G-E: 24-Port Gigabit Switch for Modern Networks

Upgrade your network with the Cisco Catalyst 9300L-24T-4G-E, a high-performance, manageable switch designed for modern enterprise networks. This switch offers a robust set of features, including 24 Gigabit Ethernet ports and 4 SFP uplinks, making it ideal for businesses requiring reliable connectivity and essential network functionalities.

This switch is part of the Cisco Catalyst 9300 Series, known for its security, IoT readiness, and cloud integration. It’s a solid foundation for Software-Defined Access (SD-Access) and supports dense wireless environments, making it a smart choice for businesses leveraging Wi-Fi 6 and 802.11ac Wave2 technologies.

Best Features:

• 24 Gigabit Ethernet Ports: Provides high-speed connectivity for numerous devices.
• 4 SFP Uplink Ports: Offers flexible connectivity options using optical fiber.
• Managed Switch: Allows for advanced configuration and control over network traffic.
• StackWise Technology: Enables stacking of up to 8 switches for increased bandwidth and redundancy.
• Network Essentials License: Includes essential features for routing, security, and network management.
• Rack-Mountable Design: Easily integrates into standard network racks for efficient deployment.

Technical Specifications:

• Ports: 24 x 10/100/1000Base-T RJ-45, 4 x 1G SFP
• Switching Capacity: 56 Gbps (up to 376 Gbps with stacking)
• Forwarding Rate: 41.66 Mpps (up to 279.76 Mpps with stacking)
• MAC Address Table Size: 32,000 entries
• RAM: 8 GB
• Flash Memory: 16 GB
• Stacking Bandwidth: Up to 320 Gbps with StackWise-320
• VLANs: Supports up to 4094 VLANs
• Power Supply: 350W AC (single, redundant PSU supported)
• Dimensions: 1.7″ x 17.5″ x 16.1″

Networking Equipment Features:

• Network Standards: IEEE 802.3 (Ethernet), IEEE 802.1Q (VLAN), IEEE 802.3af (PoE)
• Data Transfer Rate and Number of Ports: 24 x 10/100/1000 Mbps RJ-45 ports, 4 x 1 Gbps SFP ports
• Management Features: Managed, Cisco DNA Center compatible
• Security Protocols: Cisco TrustSec, Encrypted Traffic Analytics (ETA)

How to Use:

1. Mount the switch in a standard 19-inch rack using appropriate mounting hardware.

2. Connect network devices to the 24 Gigabit Ethernet ports using RJ-45 cables.

3. Connect fiber optic cables to the 4 SFP ports for uplink connections.

4. Connect the power cable and power on the switch.

5. Configure the switch using the Cisco IOS XE command-line interface (CLI) or web-based interface.

Conclusion:

The Cisco Catalyst 9300L-24T-4G-E is a reliable and scalable networking solution for businesses seeking a managed switch with essential features and strong performance. Upgrade your network infrastructure today and experience the benefits of Cisco’s trusted technology. Contact us now to purchase!
