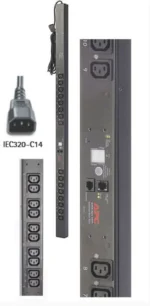

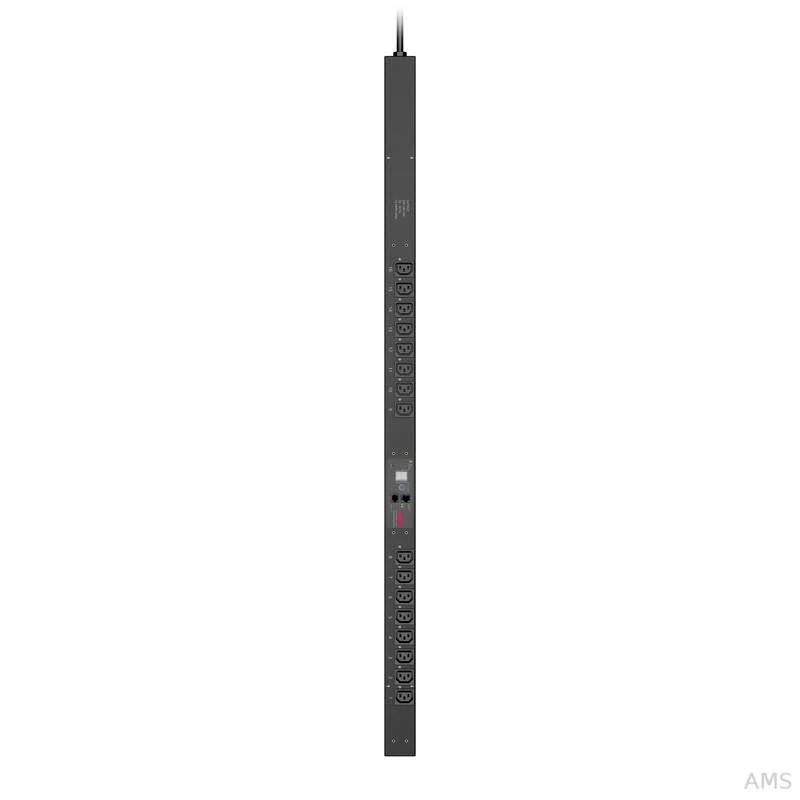

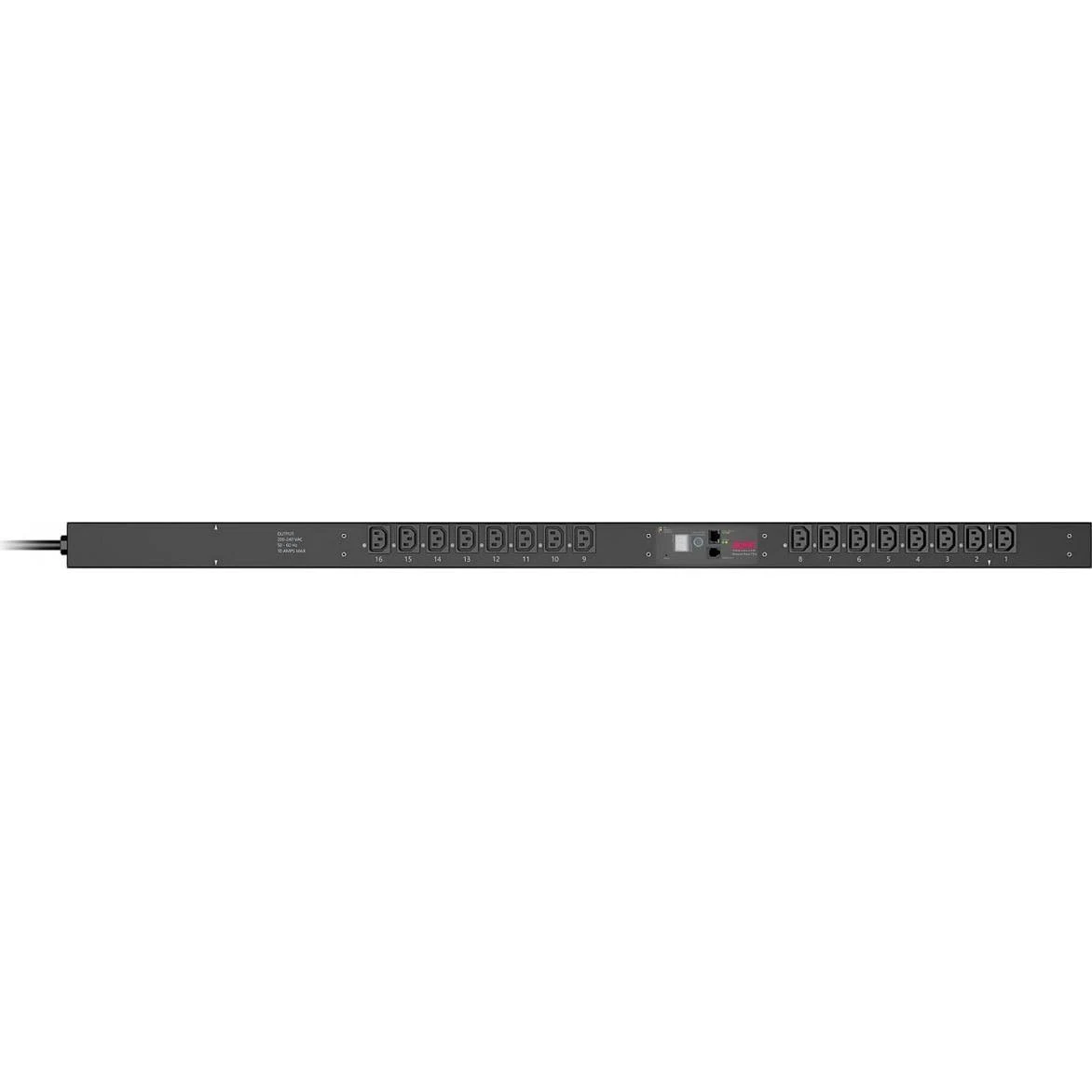

APC Switched Rack PDU – Zero U, 10A, 230V – AP7950B

APC Switched Rack PDU: Intelligent Power Management for Your Rack

The APC Switched Rack PDU (AP7950B) is the ideal solution for data centers and IT environments needing remote power management. This zero U PDU efficiently distributes power while maximizing rack space. With remote outlet switching, power monitoring, and a robust design, the AP7950B ensures your critical equipment stays online and operates efficiently.

Best Features:

• Remote Outlet Switching: Cycle power to individual outlets to reboot locked equipment or restrict unauthorized use.
• Zero U Design: Mounts vertically to save valuable rack space.
• Power Monitoring: Real-time monitoring of current helps prevent overloads.
• 16 C13 Outlets: Provides ample connections for various IT devices.
• Network Management: Remotely manage via Web, SNMP, or Telnet interfaces.
• Flash Upgradeable: Easily upgrade firmware for future enhancements.

Technical Specifications:

• Rack PDU Type: Switched
• Form Factor: Zero U
• Input Voltage: 200/208/230V
• Maximum Input Current: 10A
• Output Voltage: 230V
• Output Connections: (16) IEC 320 C13
• Input Connection Type: IEC 60320 C14
• Cord Length: 3.05 meters (10 feet)
• Network Interface: RJ-45 10/100 Base-T
• Frequency: 50/60 Hz
• Dimensions (H x W x D): 124.5 cm x 5.6 cm x 4.4 cm
• Weight: 4.32 kg

Technical Specifications:

The APC AP7950B Switched Rack PDU provides reliable power distribution and remote management capabilities for your critical IT equipment. Its zero U form factor maximizes rack space, while the switched outlets allow for remote rebooting and power control.

Warranty & Support:

APC by Schneider Electric provides a standard 2-year warranty for the AP7950B Rack PDU. This warranty covers defects in materials and workmanship. For detailed warranty information or extended warranty options, please visit the APC website or contact their support team.

Service options and support channels include:

• 24/7 technical support
• Online knowledge base
• Phone support
• On-site maintenance contracts

How to Use:

1. Mount the PDU vertically in your server rack using the included mounting brackets.
2. Connect the PDU to a compatible 230V power source using the IEC C14 input.
3. Connect your IT equipment to the C13 outlets.
4. Connect the PDU to your network using the RJ-45 port.
5. Access the PDU’s web interface to configure outlet settings, monitor power usage, and set alarms.

Conclusion:

Upgrade your data center’s power management with the APC AP7950B Switched Rack PDU. Its intelligent features, robust design, and space-saving form factor make it an essential component for any modern IT environment. Don’t wait, order yours today and experience the benefits of remote power control and monitoring!
