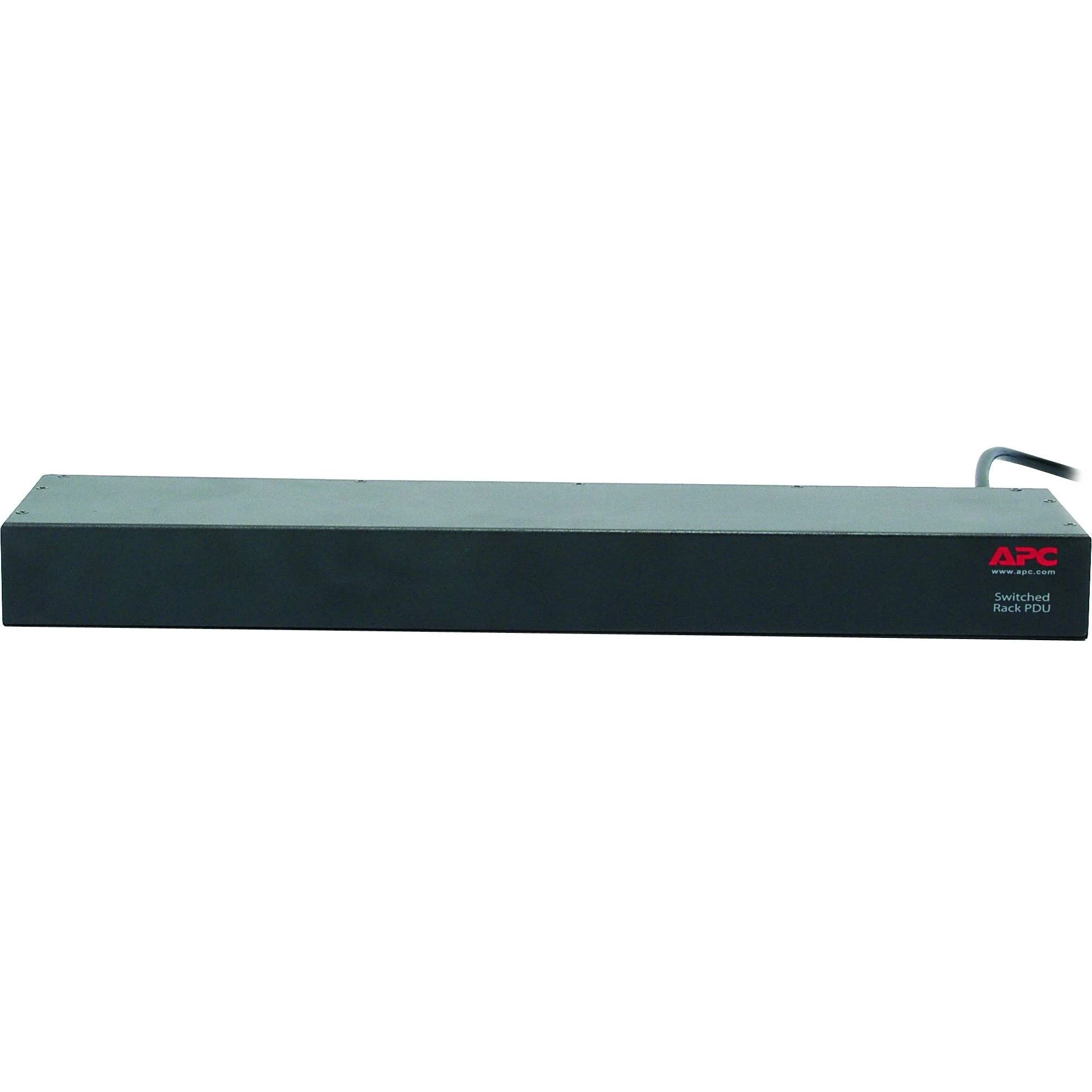

APC Switched Rack PDU – Remote Power Control for Your Network

The APC AP7921B Rack PDU is a switched PDU designed to provide advanced power distribution and remote management capabilities for your critical IT equipment. This 1U PDU offers 8 C13 outlets and operates at 208/230V with a 16A capacity, making it ideal for data centers, server rooms, and colocation facilities. With its remote switching capabilities, you can efficiently manage power, reboot devices, and optimize energy usage from anywhere.

Best Features:

• Remote Outlet Control: Individually control each of the 8 C13 outlets to remotely reboot connected equipment, power down unused devices, and troubleshoot power issues.
• Network Management: Full-featured network management interfaces provide standards-based management via Web, SNMP, and Telnet for remote access, configuration, and management.
• Local Current Monitoring: A local current monitoring display provides a visible warning when an overload condition is detected, helping to prevent downtime.
• Power Sequencing: Configure the sequence in which power is turned on or off for each outlet to prioritize load start-ups and prevent circuit overloads.
• 1U Rack Mount: The compact 1U design allows for easy installation in standard server racks and cabinets.
• Energy Efficiency: Enables improved energy efficiency and scope 1 and 3 emissions tracking.

Technical Specifications:

• Nominal Input Voltage: 200-230V
• Nominal Output Voltage: 208-230V
• Maximum Current: 16A
• Input Current: 20A
• Load Capacity: 3680VA
• Output Connections: (8) IEC 320 C13
• Input Connection: IEC 320 C20
• Dimensions (WxDxH): 445 x 108 x 44 mm
• Mounting: Rack-mountable, 1U
• Cable Length: 2.5 meters
• Weight: 2.27 kg

Technical Specifications:

• PDU Type: Switched
• Rack Height: 1U
• Output Voltage: 208V, 230V
• Input Current: 20A
• Mount Type: Rack-mountable

Warranty & Support:

The APC AP7921B comes with a standard 2-year repair or replace warranty. APC offers various service options and support channels, including online support, phone support, and extended warranty plans. Customers can also access technical support engineers for assistance with any issues.

How to Use:

1. Mount the PDU in a standard 19-inch rack using the included mounting brackets.

2. Connect the PDU to a compatible power source using the IEC 320 C20 inlet.

3. Connect your IT equipment to the eight IEC 320 C13 outlets.

4. Configure network settings via Web, SNMP, or Telnet to enable remote management.

5. Monitor power consumption and control outlets as needed through the network interface.

Upgrade your power management capabilities with the APC AP7921B Switched Rack PDU. Offering remote control, monitoring, and a compact design, this PDU is an excellent choice for optimizing your IT infrastructure. Buy yours today!
