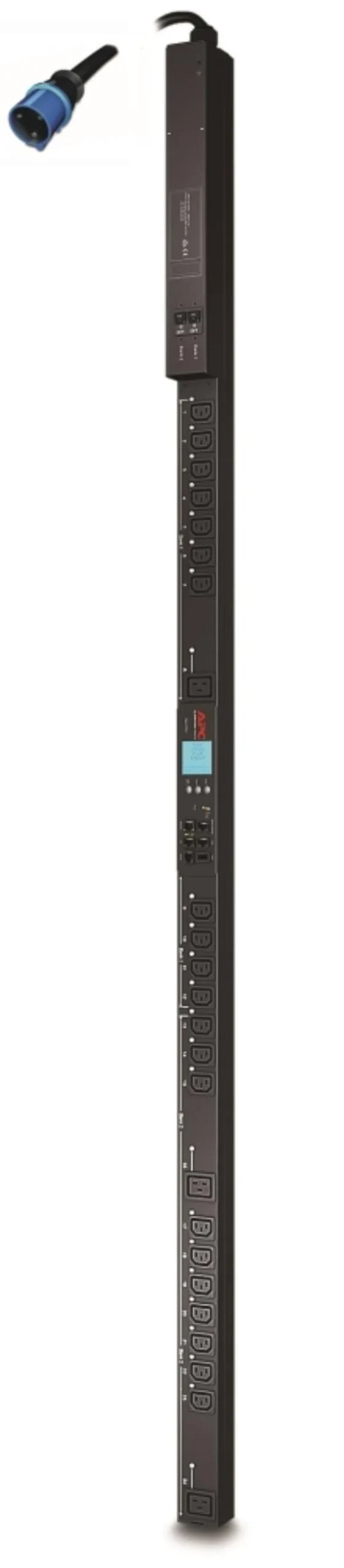

APC Rack PDU 2G: Metered by Outlet with Switching – AP8653

The APC Rack PDU 2G (AP8653) is an advanced power distribution unit designed for data centers and demanding IT environments. This PDU provides metered-by-outlet power monitoring and remote switching capabilities, giving you unparalleled control over your power infrastructure. Ideal for businesses needing to optimize energy usage, remotely manage equipment, and prevent downtime, the AP8653 offers a comprehensive power management solution.

Best Features:

• Metered-by-Outlet: Real-time monitoring of power consumption at each individual outlet.
• Remote Outlet Switching: Remotely turn on/off individual outlets to reboot locked equipment or prevent unauthorized use.
• Alarm Thresholds: User-defined alarm thresholds to warn of potential circuit overloads.
• Power Sequencing: Define the order in which connected equipment powers up or down.
• Network Management: Access, configure, and manage the PDU via Web, SNMP, or Telnet.
• ZeroU Form Factor: Vertical mounting that doesn’t take up valuable rack space.

Technical Specifications:

• Vendor Part Number: AP8653
• UPC Code: 731304276982
• Input Voltage: 200/208/230 V AC
• Output Voltage: 230 V AC
• Max Line Current: 32A
• Load Capacity: 7400 VA

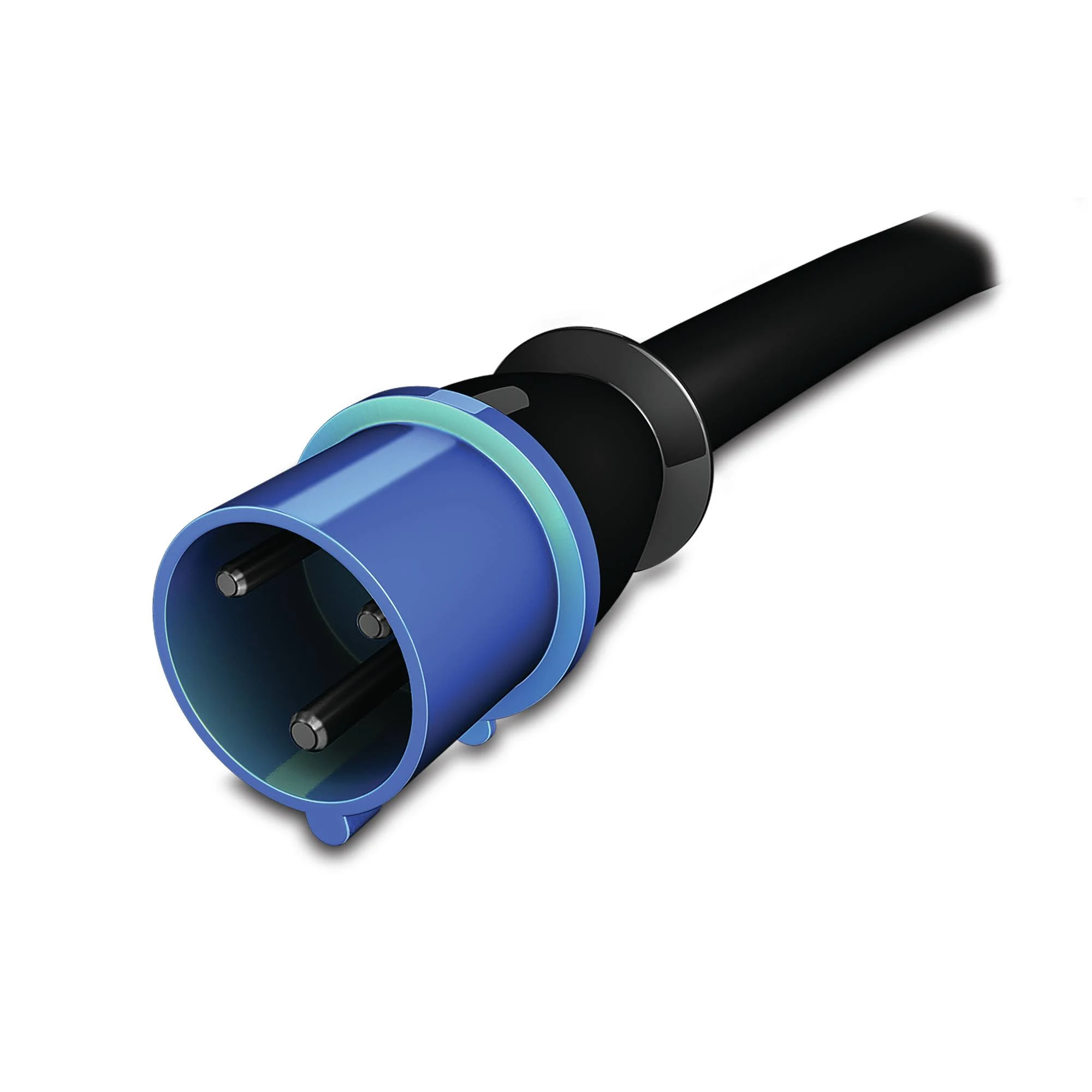

• Input Connection Type: IEC 60309 32A 2P+E
• Output Connections: 21 x IEC 60320 C13, 3 x IEC 60320 C19
• Cord Length: 3 meters
• Form Factor: Zero U
• Dimensions: 182.9 cm (Height) x 5.6 cm (Width) x 5.1 cm (Depth)
• Weight: 8.23 kg
• Network Interface: Web, SNMP, Telnet

Category-Specific Sections:

Technical Specifications:

The APC AP8653 Rack PDU 2G provides advanced power management capabilities. It supports metering by outlet, allowing for precise monitoring of energy consumption. The switching function enables remote control of individual outlets, facilitating reboots and preventing unauthorized use. Its ZeroU design maximizes rack space. The PDU supports secure Web, SNMP, and Telnet interfaces for remote management and integrates with APC’s StruxureWare Data Center Expert for centralized management.

Warranty & Support:

APC by Schneider Electric provides a standard 2-year warranty covering repair or replacement. Additional protection plans, such as extended warranties and on-site service, may be available through APC or authorized partners. Support channels include phone-based troubleshooting and online resources.

How to Use:

1. Mount the PDU vertically in your server rack using the included brackets.
2. Connect the PDU to a compatible 230V power source using the IEC 60309 input.
3. Connect your devices to the C13 and C19 outlets.
4. Configure network settings via Web, SNMP, or Telnet.
5. Set alarm thresholds and power sequencing as needed.
6. Monitor power consumption and control outlets remotely.

Conclusion:

Take control of your data center’s power distribution with the APC Rack PDU 2G. With its advanced metering and switching capabilities, you can optimize energy usage, remotely manage your equipment, and prevent costly downtime. Invest in the AP8653 today and experience the peace of mind that comes with superior power management.
