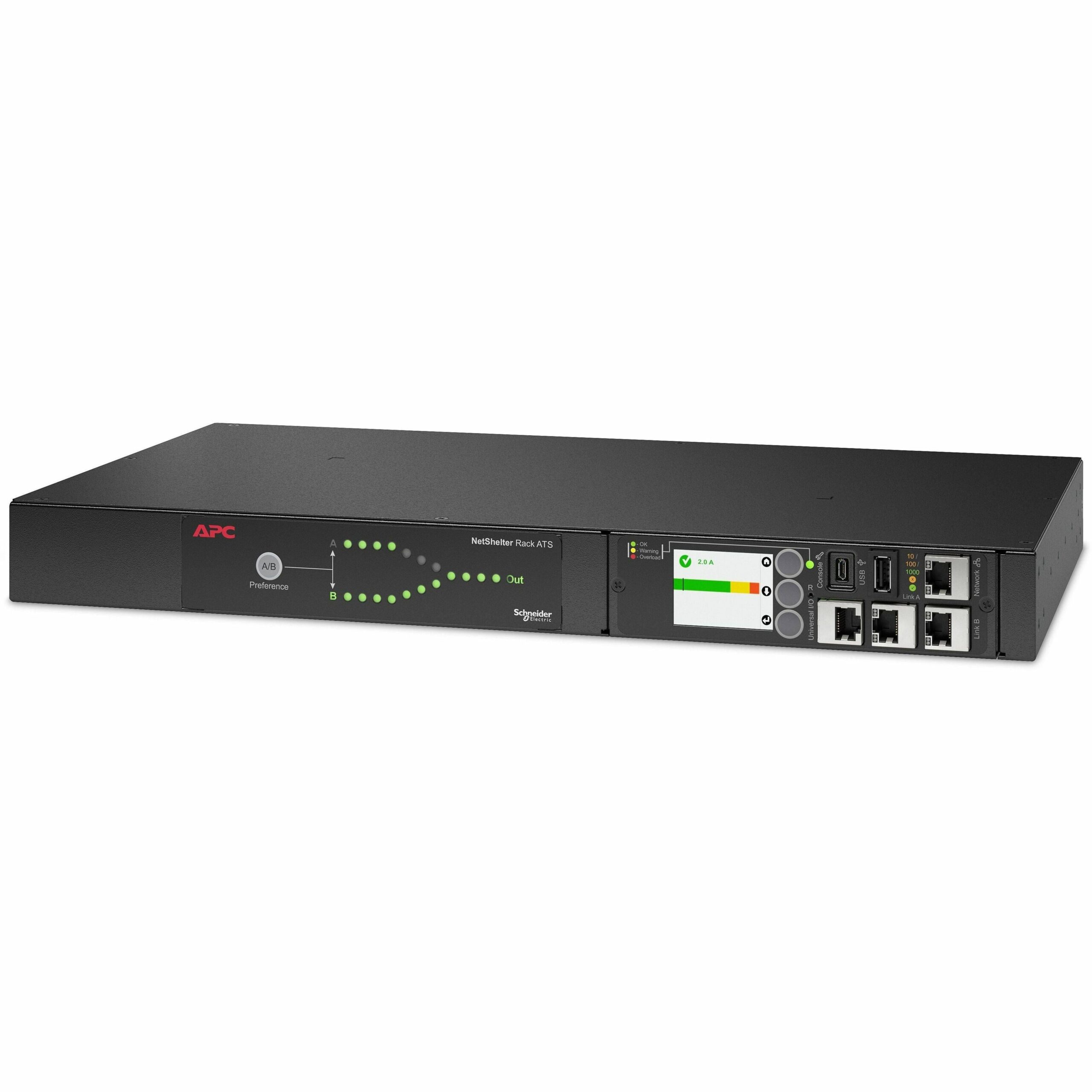

APC Rack ATS G3: Reliable Redundant Power for Your IT Equipment

The APC Rack ATS G3 230V 16A C20 in (8) C13 (1) C19 (AP4423A) provides reliable, redundant power to single-corded equipment loads, such as servers. This automatic transfer switch ensures your critical IT equipment stays online, even when one power source fails. With seamless power switching and remote management capabilities, it’s an ideal solution for maintaining uptime in your data center or server room.

Best Features:

• Redundant Power: Connects to two independent power sources for automatic failover.
• Seamless Switching: Automatically transfers loads to the secondary source if the primary source becomes unavailable.
• Remote Management: Offers remote management through Web, SNMP, SHH, Telnet, or EcoStruxure™ Data Center Expert.
• Multiple Outlets: Features 8 IEC C13 and 1 IEC C19 outlets for connecting various devices.
• Enhanced Security: Upgraded with APC NMC3 for network port sharing, environmental monitoring, and enhanced security.
• Easy Integration: 1U rack-mountable form factor for easy integration into existing rack environments.

Technical Specifications:

• Main Input Voltage: 230 V AC 1 phase
• Main Output Voltage: 230 V AC 1 phase
• Rated Current: 16A
• Input Connection Type: IEC 60320 C20 16 A 2P+E
• Output Connections: 8 x IEC 60320 C13, 1 x IEC 60320 C19
• Frequency: 50/60 Hz
• Load Capacity: 3700VA
• Number of Rack Units: 1U
• Height: 1.73 in (4.4 cm)
• Width: 17.01 in (43.2 cm)
• Depth: 9.29 in (23.6 cm)
• Net Weight: 8.25 lb(US) (3.74 kg)

Warranty & Support:

The APC Rack ATS G3 comes with a standard 2-year warranty. An extended 5-year warranty is also available for added peace of mind. Service options and support channels include online support, phone support, and a comprehensive knowledge base at APC’s website. Additional protection plans may also be available through authorized APC resellers.

The APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. It features industry-leading dependability, agility, and manageability. The NetShelter Rack ATS Fifth-Generation series has been upgraded with the Network Management Card 3 (NMC3) and other technological advancements for network port sharing, environmental monitoring, and heightened security.

How to Use:

1. Mount the Rack ATS in a standard 19-inch rack using the included mounting hardware.

2. Connect two independent power sources to the IEC C20 inlets.

3. Connect your IT equipment to the IEC C13 and IEC C19 outlets.

4. Configure network settings via Web UI, SNMP, or other supported interfaces.

Don’t leave your critical IT equipment vulnerable to power outages. Invest in the APC Rack ATS G3 today for reliable redundant power and peace of mind. Order now!
